The ADS-B demodulator plugin can be used to receive and display ADS-B and Mode S frames broadcast by aircraft. These contain information about an aircraft, such as position, altitude, heading and speed, broadcast by aircraft on 1090MHz. ADS-B and Mode S frames have a chip rate of 2Mchip/s, so the baseband sample rate should be set to 2MSa/s or greater.

As well as displaying information received via ADS-B and Mode S, the plugin can also combine information from a number of databases to display more information about the aircraft and flight, airports and weather.

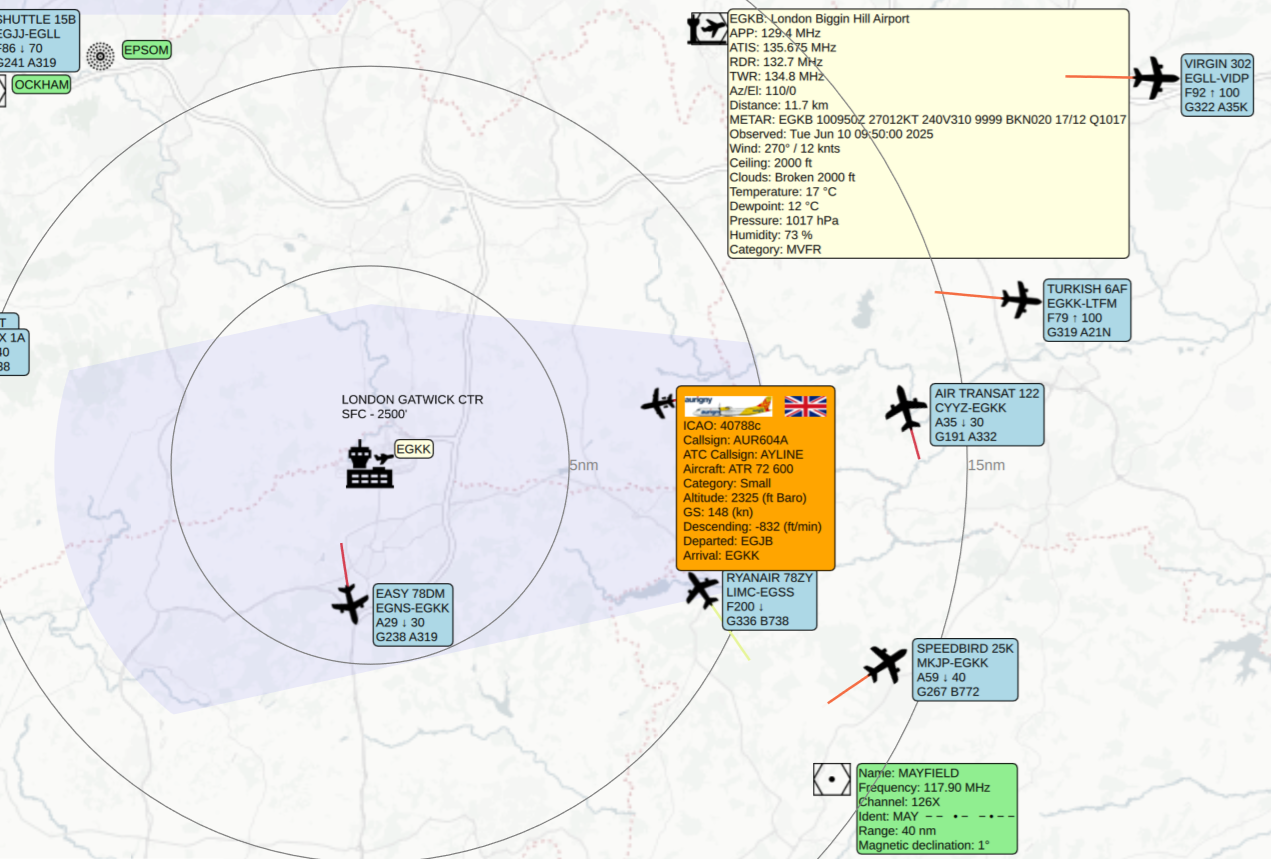

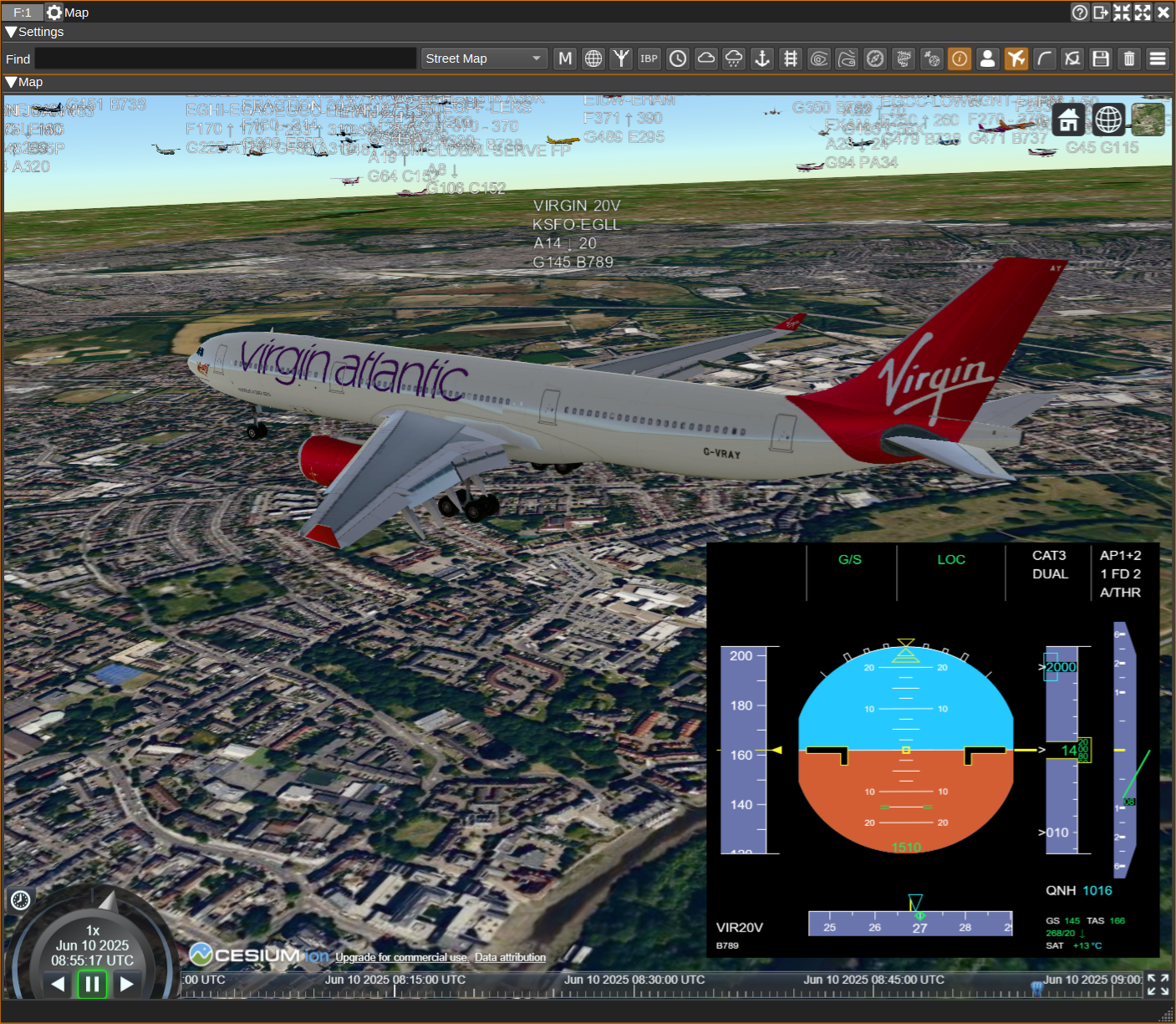

The ADS-B plugin can send aircraft for display on the Map Feature alongside objects from other plugins and in 3D, with aircraft data displayed on a PFD (Primary Flight Display).

Interface

The top and bottom bars of the channel window are described here

1: Frequency shift from center frequency of reception value

Use the wheels to adjust the frequency shift in Hz from the center frequency of reception. Right click on a digit sets all digits on the right to zero. This effectively floors value at the digit position. Wheels are moved with the mousewheel while pointing at the wheel or by selecting the wheel with the left mouse click and using the keyboard arrows. Pressing shift simultaneously moves digit by 5 and pressing control moves it by 2. Left click on a digit sets the cursor position at this digit.

2: Channel power

Average total power in dB relative to a +/- 1.0 amplitude signal received in the pass band.

3: Level meter in dB

top bar (green): average value
bottom bar (blue green): instantaneous peak value
tip vertical bar (bright green): peak hold value

4: RF bandwidth

This is the bandwidth in MHz of the channel signal before demodulation.

5: QNH

The QNH setting should be set to the local air pressure in Hectopascals / millibars. It is used to adjust aircraft reported pressure altitudes to heights for display on the 3D map.

When unchecked, the QHN setting is automatically adjusted according to values received from aircraft below the transition altitude. When checked, a value can be entered manually.

6: SR - Channel Sample Rate

This specifies the channel sample rate the demodulator uses. Values of 2M-12MSa/s are supported, 2MSa/s steps. Ideally, this should be set to the same value as the baseband sample rate (the sample rate received from the radio). If it is different from the baseband sample rate, interpolation or decimation will be performed as needed to match the rates.

2 or 4 MSa/s should give decent decodes. Higher rates may be experimented with if your hardware allows it (radio device and processing power). However the higher the rate the more processing power required.

7: S - Demodulate Mode S frames

Checking the S button will enable demodulation of Mode S ELS (Elementary Surveillance), EHS (Enhanced Surveillance) and MRAR (Meteorological Routine Air Report) frames.

8: Correlation Threshold

This sets the correlation threshold in dB between the received signal and expected 1090ES preamble, that is required to be exceeded before the demodulator will try to decode a frame. Values of 5 to 7 should give good results. Lower values should decode more frames and will require more processing power, but will more often decode invalid frames. You may also look at correlation values obtained with reliable signals in the "Correlation" column of the data table.

9: PCE - Mode S Preamble Chip Errors

Specifies the allowed number of errors in Mode S preambles. Higher values may allow more frames to be received, but increases the chance of decoding invalid frames.

9: Download Aircraft Database

Clicking this will download the aircraft database. This database contains information about aircraft, such as registration, aircraft model, owner details and also airline routes, that is not broadcast via ADS-B. Once downloaded, this additional information will be displayed in the table alongside the ADS-B data. The database should only need to be downloaded once, as it is saved to disk, and it should be downloaded before starting the demodulator.

10: Download OurAirports Airport Databases

Clicking this will download the OurAirports airport databases. These contains names and locations for airports allowing them to be drawn on the map, as well as their corresponding ATC frequencies, which can also be displayed next to the airport on the map, by clicking the airport name. The size of airports that will be displayed on the map, and whether heliports are displayed, can be set in the Display Settings dialog.

11: Download OpenAIP Airspace and NAVAID Databases

Clicking this will download the OpenAIP airspace and NAVAID databases. These can be displayed on the map. The airspace categories to be displayed can individually be selected in the Display Settings dialog.

12: Display Settings

Clicking the Display Settings button will open the Display Settings dialog, which allows you to choose:

General:

The units for altitude, speed and vertical climb rate. These can be either ft (feet), kn (knots) and ft/min (feet per minute), or m (metres), kph (kilometers per hour) and m/s (metres per second).
Whether aircraft photos are displayed for the highlighted aircraft.
The timeout, in seconds, after which an aircraft will be removed from the table and map, if an ADS-B frame has not been received from it.
The font used for the table.
Whether the columns in the table are automatically resized after an aircraft is added to it. If unchecked, columns can be resized manually and should be saved with presets.
Whether to log 3D model matching information. This explains why a particular 3D model is used for an aircraft / airline.
Whether to favour airline liveries over aircraft type when trying to find a 3D model. E.g. if actual aircraft is BA 787 and that exact 3D model is not available, would you prefer to have a BA 777 model or a 787 with a random livery.
A aviationstack API key, needed to download flight information (such as live departure and arrival airports and times).
A CheckWX API key can be entered in order to download airport weather (METARs) which can be displayed on the map.
The transition altitude in feet for use in ATC mode. Below the TA, altitude will be displayed. Above the TA flight levels will be displayed.

Map:

The map provider. This can be osm for OpenStreetMaps or mapboxgl for Mapbox. mapboxgl is not supported on Windows. mapboxgl should be used on Linux with Qt 5.15.3, as osm maps will cause SDRangel to hang, due to a bug in Qt.
The type of map that will be displayed. This can either be a light or dark aviation map (with no place names to reduce clutter), a street map or satellite imagery.
A Maptiler API key can be entered in order to use satellite map imagery. Although you may be able to view satellite imagery without entering a key, if too many users do this, we may exceed our usage quota and then the imagery will be unavailable for all.
The minimum zoom level (0 min zoom - 15 max zoom) at which aircraft icons will be scaled.
The minimum size airport that will be displayed on the map: small, medium or large. Use small to display GA airfields, medium for regional airports and large for international airports.
Whether or not to display heliports.
The distance (in kilometres), from the location set under Preferences > My Position, at which airports will be displayed on the map. Displaying too many airports will slow down drawing of the map.
What category of airspaces should be displayed.
The distance (in kilometres), from the location set under Preferences > My Position, at which airspaces will be displayed on the map. Displaying too many airspaces will slow down drawing of the map.
Whether NAVAIDs, such as VORs, are displayed on the map.
Whether callsigns as said by ATC (E.g. Speedbird) are used on the map instead of the airline ICAO designator (E.g. BAW).
The colour palette to use for aircraft flight paths.

13: Display Flight Path

Checking this button draws a line on the map showing the highlighted aircraft's flight paths, as determined from received ADS-B frames. The path can be coloured according to altitude. The colour palette for this can be set in Display Settings.

Each palette has 8 colours, one for each 5,000 ft. For the Spectral palette, 0-5000 ft is red and above 35,000 ft is blue.

14: Display All Flight Paths

Checking this button draws flight paths for all aircraft.

14: ATC Mode

When in ATC mode, the map will display callsign, route, altitude, ground speed and type, as well as the last 25 seconds of it flight path for all aircraft. When unchecked, only callsign (or ICAO, until callsign is received) will be displayed.

15: Receiver Coverage Map

When checked, a receiver coverage map will be displayed. This will show the maximum distance a frame has been received from in each direction. The yellow region is for frames freceived from aircraft above 10,000 ft, with the green region for below 10,000 ft.

Right clicking on the button will clear the coverage map data.

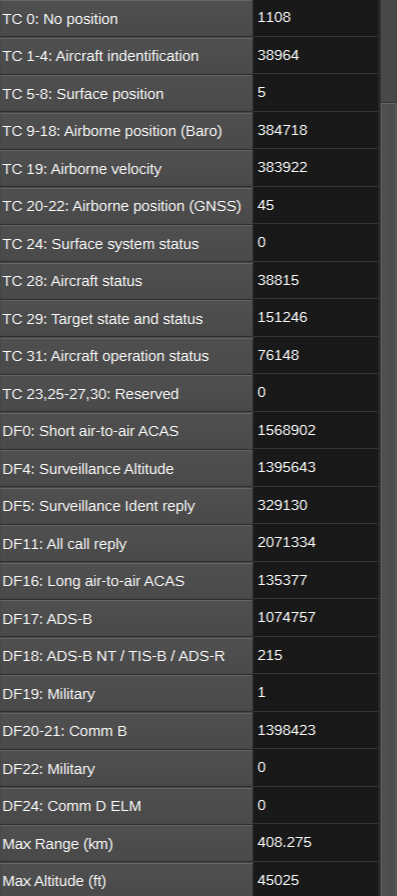

16: Display Statistics

When checked, a statistics table will be displayed. This table contains statistics such as:

Total number of frames received.
Frame reception rate in fps (frames per second).
Data rate in nbp (kilobits per second).
Number of ADS-B frames received by TC (typecode).
Number of Mode S frarames received by DF (downlink format).
Maximum range to an aircraft in km.
Maximum aircraft altitude in feet.
Maximum reception rate in fps.

The statistics can be reset by right clicking the button.

17: Display Chart

When checked, a chart will be displayed that shows ADS-B and Mode S frame rates in fps (frames per second) as well as the total number of aircraft frames have been received from in the last 10 seconds. The chart is updated every second. Data older than 10 minutes is averaged over a minute, in order to keep the number of data points managable.

You can zoom in/out the chart's horizontal axis using the mouse wheel. Hold shift to zoom in/out the chart's vertical axis. Series can be hidden/shown by clicking on the corresponding label in the legend.

18: Display Orientation

Check to display the ADS-B table and map side by side. Uncheck for table on top of the map.

19: Display Containment Radius

When checked, an aircraft's horizontal containment radius (Rc) will be drawn as a red circle around an aircraft on the map. This circle represents the aircraft's uncertainty in its reported position.

20: Download flight information for selected flight

When clicked, flight information (departure and arrival airport and times) is downloaded for the aircraft highlighted in the ADS-B data table using the aviationstack.com API. To be able to use this, a callsign for the highlighted aircraft must have been received. Also, the callsign must be mappable to a flight number, which is not always possible (this is typically the case for callsigns that have a letter in the last 3 digits, as for these, some digits from the flight number will have been omitted).

To use this feature, an aviationstack API Key must be entered in the Display Settings dialog (12). A free key giving 500 API calls per month is available.

21: Feed

Checking Feed enables feeding received ADS-B frames to aggregators such as Airplanes.Live, ADS-B Exchange, ADSBHub or OpenSky Network and receiving aircraft state from anywhere in the world from OpenSky Network. Right clicking on the Feed button opens the Feed Settings dialog.

The ADS-B plugin can export ADS-B frames acting as both a client and server. When a client, the ADS-B plugin opens a connection to a remote host. When a server, the remote computer connects to this computer.

As a client:

For Airplanes.Live, check Enable Client, set Server hostname to feed.airplanes.live, Port to 30004 and Format to Beast binary. You can check for successful feeding at: https://www.airplanes.live/myfeed/
For ADS-B Exchange, check Enable Client, set Server hostname to feed.adsbexchange.com, Port to 30005 and Format to Beast binary. You can check for successful feeding (after about 30 seconds) at: https://www.adsbexchange.com/myip/
For ADSBHub, check Enable Client, set Server hostname to data.adsbhub.org, Port to 5002 and Format to Beast hex. You will need to have setup an account on ADSBHub first. You can check for successful feeding at: https://www.adsbhub.org/statistic.php

As a server:

For OpenSky Network, check Enable Server and set Port to 30005. You can check for successful feeding at: https://opensky-network.org/my-opensky

The Beast binary and Hex formats are as detailed here: https://wiki.jetvision.de/wiki/Mode S_Beast:Data_Output_Formats

When Enable import is checked, aircraft data for aircraft anywhere in the world can be imported from OpenSky Network. A username and password are not required, but when specified, this allows the update period to be reduced to 5 seconds instead of 10 seconds, and 4000 API calls per day instead of 400. To limit network traffic and processing power requirements, a geographical region can be set via the minimum and maximum latitude and longitude fields.

22: Open Notifications Dialog

When clicked, opens the Notifications Dialog, which allows speech notifications or programs/scripts to be run when aircraft matching user-defined rules are seen.

For example, you might want an audible notification when a particularly interesting aircraft is nearby or when an aircraft declares an emergency. By running a program such as cmail, e-mail notifications can be sent.

Also you can set the target aircraft to the matching aircraft automatically by checking the box in the "Auto target" column.

Here are a few examples:

Aircraft categories are:

Light
Small
Large
High vortex
Heavy
High performance
Rotorcraft
Glider/sailplane
Lighter-than-air
Parachutist
Ultralight
UAV
Space vehicle
Emergency vehicle
Service vehicle
Ground obstruction
Cluster obstacle
Line obstacle

Emergency status are:

No emergency
General emergency
Lifeguard/Medical
Minimum fuel
No communications
Unlawful interference
Downed aircraft

In the Speech and Command strings, variables can be used to substitute in data from the ADS-B table for the aircraft:

${icao},
${callsign}
${aircraft}
${verticalRate}
${gs}
${tas}
${is}
${mach}
${selAltitude}
${altitude}
$(verticalRate}
${selHeading}
${heading}
${turnRate}
${roll}
${range}
${azel}
${category}
${status}
${squawk}
${ident}
${registration}
${manufacturer}
${owner}
${operator}
${ap}
${vMode}
${lMode}
${tcas}
${acas}
${ra}
${version}
${length}
${width}
${baro}
${headwind}
${windSpeed}
${windDirection}
${staticPressure}
${staticAirTemperature}
${humidity}
${latitude}
${longitude}
${ic}
${rssi}
${flightstatus}
${departure}
${arrival}
${std}
${etd}
${atd}
${sta}
${eta}
${ata}

23: Start/stop Logging ADS-B frames to .csv File

When checked, writes all received ADS-B frames to a .csv file.

24: .csv Log Filename

Click to specify the name of the .csv file which received ADS-B frames are logged to.

25: Read Data from .csv File

Click to specify a previously written ADS-B .csv log file, which is read and used to update the ADS-B data table and map.

26: Find on Feature Map

Click to find the currently selected aircraft on a Map Feature.

27: Delete All Aircraft

Click to delete all aircraft from the table and map.

28: IC - Interrogator Code

The IC dropdown contains a checkable list of Mode S IC (Interrogator Codes) that have been received. When checked, an ellipse in the corresponding colour is drawn on the map showing the location of all the aircraft that have responded to that IC.

29: AM Demod

Specify the AM Demodulator that will be have its centre frequency set when an airport ATC frequency is clicked on the map.

ADS-B Data

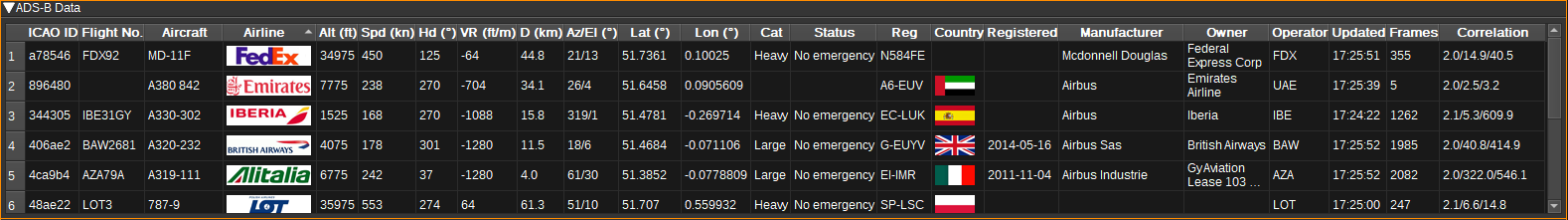

The table displays the decoded ADS-B and Mode S data for each aircraft along side data available for the aircraft from the database (DB) and aviationstack (API). The data is not all able to be transmitted in a single ADS-B frame, so the table displays an amalgamation of the latest received data of each type.

ICAO ID - 24-bit hexadecimal ICAO aircraft address. This is unique for each aircraft. (ADS-B)
Callsign - Aircraft callsign (which is sometimes also the flight number). (ADS-B / Mode S)
ATC callsign - Callsign used by ATC (E.g. Speedbird for BAW / British Airways).
Aircraft - The aircraft model. (DB)
Type - The aircraft's ICAO type desiginator. (DB)
Sideview - Sideview image of the aircraft. (DB)
Airline - The logo of the operator of the aircraft (or owner if no operator known). (DB)
Country - The flag of the country the aircraft is registered in. (DB)
GS - Groundspeed in knots or kilometers per hour. (Mode S)
TAS - True airspeed in knots or kilometers per hour. (Mode S)
IAS - Indicated airspeed in knots or kilometers per hour. (Mode S)
Mach - Mach number. (Mode S)
Sel Alt - Selected altitude (as set on MCP/FCU or by FMS) in feet or metres. (ADS-B / Mode S)
Alt - Altitude in feet or metres. Typically the barometric altitude, but can be GNSS height. (ADS-B / Mode S)
VR - The vertical climb rate (or descent rate if negative) in feet/minute or m/s. (ADS-B / Mode S)
Sel Hd - Selected heading (as set on MCP/FCU or by FMS) in degrees. (ADS-B / Mode S)
Hd - The aircraft heading, in degrees magnetic. (ADS-B / Mode S)
Trk - The aircraft track, in degrees. (ADS-B / Mode S)
TR - Turn rate in degrees per second. (Mode S)
Roll - Roll angle in degrees. Positive is right wing down. (Mode S)
D - The distance to the aircraft from the receiving antenna in kilometres. The location of the receiving antenna is set under the Preferences > My Position menu.
Az/El - The azimuth and elevation angles to the aircraft from the receiving antenna in degrees. These values can be sent to a rotator controller Feature plugin to track the aircraft.
Category (Cat) - The vehicle category, such as Light, Large, Heavy or Rotorcraft. (ADS-B)
Status - The status of the flight, including if there is an emergency. (ADS-B)
Squawk - The squawk code (Mode-A transponder code). (ADS-B / Mode S)
Ident - Ident switch active. (ADS-B)
Registration (Reg) - The registration number of the aircraft. (DB)
Registered - The date when the aircraft was registered. (DB)
Manufacturer - The manufacturer of the aircraft. (DB)
Owner - The owner of the aircraft. (DB)
Operator - The operator ICAO. (DB)
AP - Whether autopilot is enabled. (ADS-B)
V Mode - Vertical navigation mode. This may be VNAV (Vertical navigation), HOLD (Altitude hold) or APP (Approach). (ADS-B / Mode S)
L Mode - Lateral navigation mode. This may be LNAV (Lateral navigation) or APP (Approach). (ADS-B)
TCAS - Whether TCAS is operational, or RA in red if an RA (Resolution Advisory) is active. (Mode S)
ACAS - ACAS capability: V=Vertical, H=Horizontal. (Mode S)
RA - ACAS resolution advistory. (Mode S)
Max AS - Maximum airspeed in knots. (Mode S)
Version - ADS-B version number. Only available for aircraft on the surface. (ADS-B)
L - Length of aircraft in metres. Only available for aircraft on the surface. (ADS-B)
W - Width of aircraft in metres. (ADS-B)
QNH - QNH/barometer setting in millibar/hectopascals. (ADS-B / Mode S)
H Wnd - Headwind in knots or kilometers per hour. Negative values indicate a tailwind. (Derived from Mode S)
OAT - Outside air temperature in degrees Celsius, estimated from Mach and TAS. (Derived from Mode S)
Wnd - Wind speed in knots or kilometers per hour. (Mode S)
Wnd - Wind direction in degrees. (Mode S)
P - Average static air pressure in hectopascals. (Mode S)
T - Static air temperature in degrees Celsius. (Mode S)
U - Humidity in percent. (Mode S)
Latitude (Lat) - Vertical position coordinate, in decimal degrees. North positive. (ADS-B)
Longitude (Lon) - Horizontal position coordinate, in decimal degrees. East positive. (ADS-B)
IC - Interogator code of Mode S ground station. (Mode S)
Updated - The local time at which the last message was received. (ADS-B / Mode S)
Frames - A count of the total number of frames received from this aircraft. (ADS-B / Mode S)
ADS-B FC - A count of the number of ADS-B frames received from this aircraft. (ADS-B)
Mode S FC - A count of the number of Mode S frames (excluding ADS-B) received from this aircraft. (Mode S)
Non-transponder - A count of the number of ADS-B non-transponder frames received. (ADS-B NT)
TIS-B FC - A count of the number of TIS-B frames for this aircraft. (ADS-B)
ADS-R FC - A count of the number of ADS-R frames for this aircraft. (ADS-R)
Rc - Horizontal containment radius for the aircraft. (ADS-B)
NACp - Navigation Accuracy Category for position. (ADS-B)
NACv - Navigation Accuracy Category for velocity. (ADS-B)
GVA - Geometric Vertical Accuracy. (ADS-B)
NIC - Navigation Integrity Category. (ADS-B)
NICbaro - Barometric Altitude Integrity Code. Whether the barometric pressure altitude has been cross-checked against another source. (ADS-B)
SIL - Source Integrity Level. (ADS-B)
Correlation - Displays the minimum, average and maximum of the preamble correlation in dB for each received frame. These values can be used to help select a threshold setting. This correlation value is the ratio between the presence and absence of the signal corresponding to the "ones" and the "zeros" of the sync word adjusted by the bits ratio. It can be interpreted as a SNR estimation.
RSSI - This Received Signal Strength Indicator is based on the signal power during correlation estimation. This is the power sum during the expected presence of the signal i.e. the "ones" of the sync word.
Flight status - scheduled, active, landed, cancelled, incident or diverted. (API)
Dep - Departure airport. (DB / API)
Arr - Arrival airport. (DB / API)
STD - Scheduled time of departure. (API)
ETD - Estimated time of departure. (API)
ATD - Actual time of departure. (API)
STA - Scheduled time of arrival. (API)
ETA - Estimated time of arrival. (API)
ATA - Actual time of arrival. (API)

If an ADS-B frame has not been received from an aircraft for 60 seconds, the aircraft is removed from the table and map. This timeout can be adjusted in the Display Settings dialog.

Single clicking in a cell will highlight the row and the corresponding aircraft information box on the map will be coloured orange, rather than blue.
Right clicking on the table header will open a menu allowing you to select which columns are visible.
To reorder the columns, left click and drag left or right a column header.
Left click on a header to sort the table by the data in that column.
Double clicking in an ICAO ID cell will open a Web browser and search for the corresponding aircraft on https://www.planespotters.net/
Double clicking in an Callsign cell will open a Web browser and search for the corresponding flight on https://www.flightradar24.com/
Double clicking in an Az/El cell will set the aircraft as the active target. The azimuth and elevation to the aircraft will be sent to a rotator controller plugin. The aircraft information box will be coloured green, rather than blue, on the map.
Double clicking on any other cell in the table will centre the map on the corresponding aircraft.
Right click on a cell opens a context menu that will allow you to view the aircraft on various web sites, copy the data in that cell, or find the aircraft on either the ADS-B map or Map feature.

Map

The map displays aircraft locations and data geographically. Four types of map can be chosen from in the Display Settings dialog: Aviation, Aviation (Dark), Street and Satellite.

The antenna location is placed according to My Position set under the Preferences > My Position menu. If My Position is not set correctly, the position of aircraft may not be computed correctly.

Aircraft are only placed upon the map when a position can be calculated, which can require several ADS-B frames to be received.

To pan around the map, click the left mouse button and drag. To zoom in or out, use the mouse scroll wheel.
Left clicking on an aircraft will highlight the corresponding row in the table for the aircraft and the information box on the map will be coloured orange, rather than blue.
Double clicking on an aircraft will set it as the active target and the information box will be coloured green.
Left clicking the information box next to an aircraft will reveal more information. It can be closed by clicking it again.
Left clicking the information box next to an airport will reveal ATC frequencies for the airport (if the OurAirports database has been downloaded) and METAR weather information (if the CheckWX API key has been entered). The METAR for the airport is downloaded each time the information box is opened. This information box can be closed by left clicking on the airport identifier. Double clicking on one of the listed frequencies, will tune the AM Demod (29) to that frequency. The Az/El row gives the azimuth and elevation of the airport from the location set under Preferences > My Position. Double clicking on this row will set the airport as the active target.
Right clicking on an airport will display a popup menu, allowing range rings to be shown or hidden, and for the ATC frequencies for the airport to be send to a Frequency Scanner.

Attribution

Airline logos, sideviews and flags are by Steve Hibberd from RadarSpotting

Aircraft and route data comes from OpenSky Network, RadarSpotting / Planebase and VRS.

Map icons are by Pablo Rozenberg, Cuperto, Alice Design, Alex Ahineev, Botho Willer, Verry Obito, Sean Maldjia, Tinashe Mugayi, Georgiana Ionescu, Andreas Vögele, Tom Fricker, Will Sullivan, Tim Tores, BGBOXXX Design, Joel Wisneski, Sergey Kashin and Angriawan Ditya Zulkarnain from the Noun Project

F35 icon is from Vecteezy.

NDB icon is by Inductiveload from WikiMedia.
